Minn Kota OBN RT Terrova 80 Helix 10

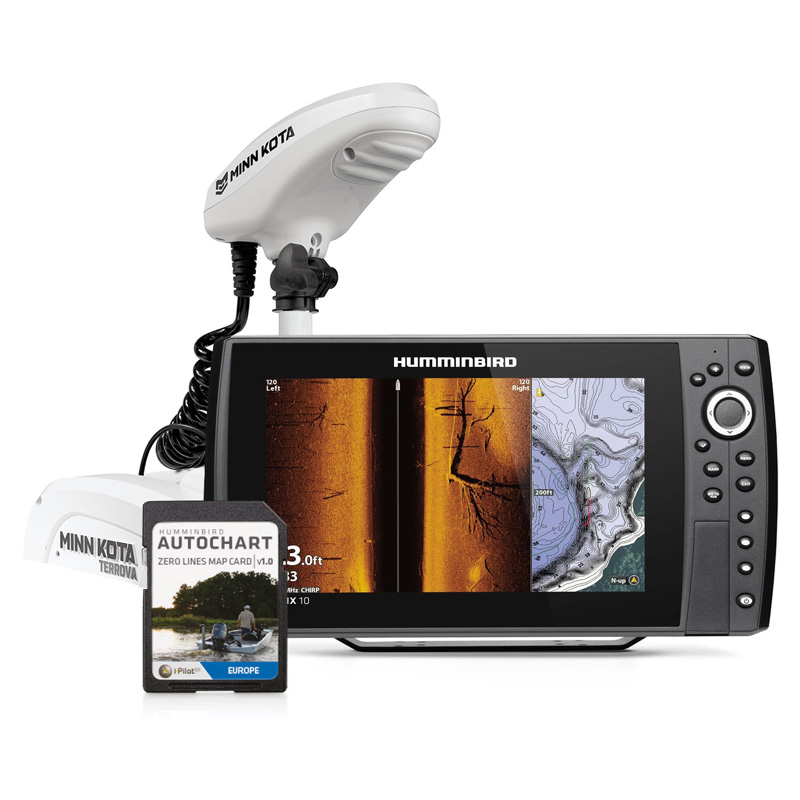

Let Humminbird Helix 10 control your Minn Kota electric motor, create routes, circulate around anchorages, follow depth contours on a Lakemaster chart or charts created with AutoChart Live and much more. The package includes the AutoChart ZeroLine chart, MKA-21 quick mount and the necessary cabling to connect the units. Complete with fuses and connectors.

Helix 10 Chirp MSI+ GPS G4N
HELIX 10 CHIRP MEGA SI+ GPS G4N with 10.1″ 1500 nits display, MEGA Side Imaging+, MEGA Down Imaging+ and Dual Spectrum CHIRP Sonar.

Equipped with Navionics chartplotter, Wi-Fi, Bluetooth, Ethernet network, NMEA 2000 and AutoChart Live to create your own real-time charts with depth, bottom hardness and vegetation.

Mega Imaging+
Broaden your horizons and increase your odds. MEGA Imaging+ has a range of 120 meters side-to-side and 60 meters in depth while delivering crystal clear images at even higher resolution. For MEGA+ devices, the 455 kHz band offers a range of 244 m side-to-side and 122 m at depth.

Dual Spectrum CHIRP
Also known as High Wide (HW) is the latest development in advanced 2D sonar. The new broadband elements in Dual Spectrum transducers have a very low Q value and deliver detailed 2D images with incredible separation. Combined with new algorithms and refined technology, the results are outstanding.

AutoChart Live
Create your own real-time charts with depth, bottom hardness and vegetation with AutoChart Live. The device has a built-in recording memory of 8 hours. If you want to expand this, AutoChart ZeroLine card is available as an accessory below. The card offers well over 2000 hours of mapping.

NMEA 2000
Connect the HELIX G4N to other devices on board via NMEA 2000 and display AIS information and engine data directly on the screen.

Ethernet
HELIX is network compatible and can easily be connected to another HELIX unit to share sonar data and waypoints, among other things. In addition to sharing the above information, you can also connect various accessories via the network connection such as Humminbird CHIRP Radar and i-Pilot Link compatible trolling motor from Minn Kota.

Bluetooth & Wi-Fi
Thanks to Bluetooth, it is possible to control the sonar directly from an RC2 wireless remote control, connect your cell phone for software updates and receive notifications of messages and calls directly on the screen. It is also possible to control the Minn Kota Talon & Cannon Optimum directly from the sonar.

Navionics charts
Prepared for Navionics cartography and supports Navionics Small, Navionics+, Platinum+ and Navionics Update charts. Charts can be overlaid with AutoChart Live.

Dual card slots
The dual SD card slots provide features such as using dual charts with different areas, saving screenshots on an empty separate SD card, using an AutoChart ZeroLine card while using Navionics Cartography and several other possibilities.

HELIX 10 comes equipped with three programmable hotkeys that allow the user to always have their favorite views at hand.

Riptide Terrova WR
Minn Kota Riptide Terrova, a saltwater resistant engine for bow mounting.

• Advanced GPS: The Terrova uses Minn Kota's new GPS guidance to keep you in place. Set Spot-Locks, save routes, control speed and steering, and more right from the updated remote control. Advanced GPS replaces both i-Pilot and i-Pilot Link to give you the best of both worlds.
• Take advantage of the One-Boat Network: The engine supports One-Boat Network connectivity as standard and comes with everything you need to connect to network-compatible Humminbird echo sounders.
• Spot-Lock anchoring with Jog: Spot-Lock keeps you in place with extreme accuracy and allows you to GPS anchor anywhere. With the included Heading Sensor, you can use Jog to move your Spot-Lock location 1.5 meters in the desired direction at the touch of a button.
• The new Drift Mode feature compensates for currents and wind by automatically adjusting speed and direction to keep the boat in a proper drift towards the depth curve or shoreline.

The motor should always be mounted with Minn Kotas 60A fuse and a compatible quick release is recommended. We also recommend the MKR-28 (See accessories below).

RTA-17 Bracket Composite Riptide
Robust composite quick mount for front mounted trolling motors with a rig length up to 60″. The bracket makes it easy to mount on and off the motor. The discreet puck solution keeps the deck clean when the motor is not in place. Stainless steel locking handles can be secured with padlocks.

Autochart Zeroline
Humminbird AutoChart ZeroLine Micro SD card with SD adapter. Contains base map of European lakes. The base map contains only contour lines; no depths or other information that a standard chart contains. Enables longer logging than the 8h offered by compatible Humminbird devices without a chart. For AutoChart Live and AutoChart PC.
