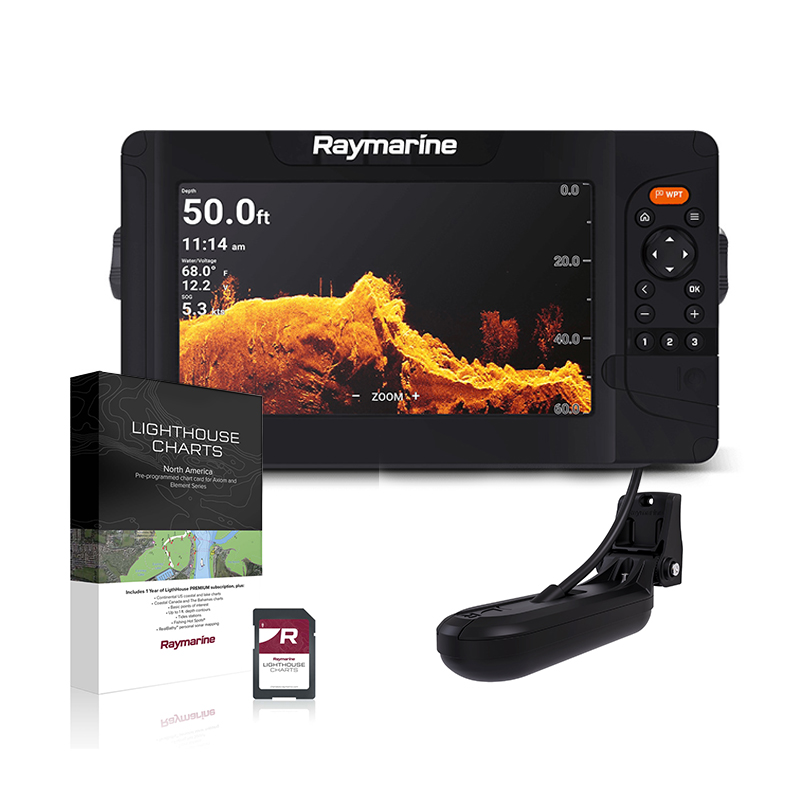

Raymarine Element 12 HV HV-100+ & LightHouse Chart Northern Europe

Delivering the sharpest view of the underwater world, Element’s HyperVision™ 1.2 megahertz sonar technology, turns up the resolution of DownVision, SideVision, and RealVision 3D to a new level of precision imaging and fish identification, letting you see structures, vegetation, and fish with amazing life-like clarity.

Bright and Rugged - Sunlight viewable displays with integrated GPS/GNSS receiver.

Superior HyperVision™ - 1.2 megahertz CHIRP sonar technology delivers much higher resolution imaging compared to conventional side and down scanning sonars.

RealVision™ 3D Built-In - Accurately identify the location of ledges, channel beds, and other contour changes.

Fast Quad-Core Processor - For instantaneous chart re-draw and sharp 3D imaging.

All-in-one Transducer - Combines HyperVision, DownVision, SideVision, RealVision, and conventional CHIRP sonar channels into one simple installation.


SMART MAPPING
With support for Raymarine LightHouse Charts with Fishing Hot Spots®, Navionics, and C-MAP charts.

MAKE YOUR OWN MAPS
Raymarine RealBathy™ personal sonar mapping and Navionics SonarCharts Live support.

SIMPLE LIGHTHOUSE SPORT OPERATING SYSTEM
Optimized for fishing, the LightHouse Sport OS is fast and easy-to-learn.

INTUITIVE CONTROLS
An oversized waypoint key for marking your favorite spots and three user-programmable keys.

Turn Up the Resolution with HyperVision™
HyperVision uses super high frequencies (1.2 megahertz) and CHIRP technology to bring a new level of precision imaging to DownVision, SideVision and RealVision 3D
1.2 megahertz HyperVision mode is optimized for super high-resolution imagery up to 100’ (30 meters)
Switch to standard 350 kHz CHIRP sonar for longer range, high-resolution imaging, and ranges up to 600’ (180 meters)
Element’s advanced CHIRP sonar also operates in the high-frequency 200kHz range for fish targeting, high-speed bottom tracking, and depths up to 900ft.
