Summary

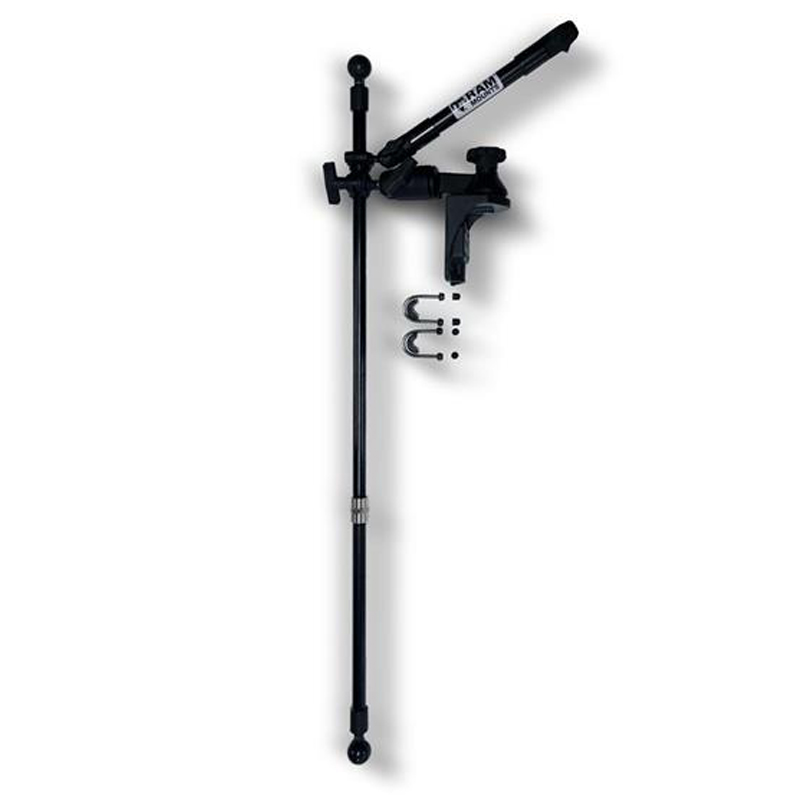

RAM Mounts Pro 360 V Live Pole Mount - Vertical And Rail Base - V stands for "vertical" for mounting on a vertical surface, inside the railing screwed to the boat or on a rail. As in some boats that have an integrated rail inside the railing or with RAM's various rail systems. This base can also be attached to the grab rail/pipe. Supplied U-bolts grip 1-1.25" (25-32mm). For larger pipes, the base can also be used with acid-resistant hose clamps such as RAM-STRAP40.

Productinformation

- 106cm long, reaches max 106cm more from the railing.
- 1 ball joint provides stability, while perfectly vertically aligned.
- Made in USA - designed in Sweden
- Complete kit for live sensors with 360 degree stepless rotation.
- Freely adjustable height. Fast adjustment with quick release clamps.
- Rod can be split for shorter overall length.
- Can adjust inertia for rotation and quickly lock in selected position.
- When the live transducer is mounted above, the rubber ball protects the transducer from grounding and handling on land.
- RAM's unique versatility makes the mount adaptable for future needs or adaptation to another boat or kayak.
- With RAM's famous ball joints, you get stability and unique adjustability, so you can adjust it in any direction, front to back, out and in, for perfect vertical placement.
- Powder-coated marine aluminum and RAM's uniquely stable ball joint.
- Swivel arm so you can fold up and mount it inside the rail when traveling.
- Tested up to 4 knots. Stable if properly mounted on the ground.
- When folded for transportation, it can be launched with extra RAM support in rough seas, like a trolling motor.
- For extra stability when searching for fish over large areas and at higher speeds, it can be fitted with extra RAM support e.g. RAP-400-201 (Trolling motor mount that you may already have).
- Handle that can be extended if necessary. 14" (36cm) RAP-BB-230-14 or 18" (46cm) RAP-BB-230-18.
- If you want to attach to the rail, you can use RAM-HAR-xxx together with RAM-B-337U. Then you also get B-balls for mobile and cup holders. Otherwise carriage bolt.
