Summary

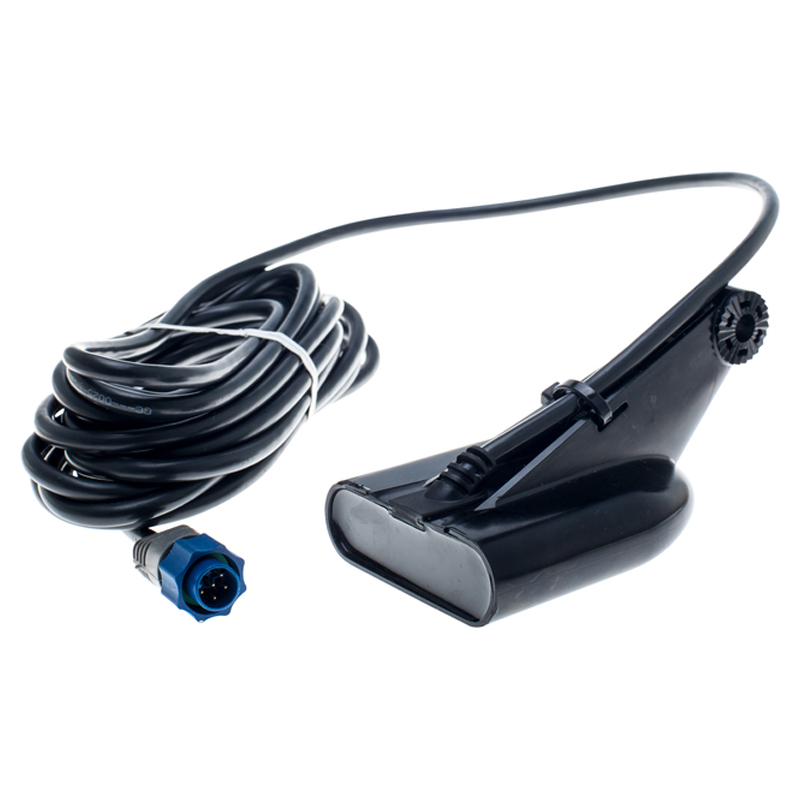

The HST-DFSBL Transsom mount skimmer from Lowrance is a plastic, transom-mounted Broadband Skimmer® transducer, ideal for smaller outboards and I/O vessels up to 8 m (25 ft) in length, in depths of less than 900 m (3000 ft).

Productinformation

The HST-DFSBL Transsom mount skimmer from Lowrance is a plastic, transom-mounted Broadband Skimmer® transducer, ideal for smaller outboards and I/O vessels up to 8 m (25 ft) in length, in depths of less than 900 m (3000 ft).


  • 50 kHz with 29° beam width
  • 200 kHz with 12° beam width
  • Up to 900 m (3000 ft) range at 50 kHz
  • 1 internal broadband ceramic
    Transom-mounted with plastic housing
  • Suitable for any hull
    Ideal for outboards and I/O vessels up to 8 m (25 ft) in length
  • Recommended for use with the SonarHub sounder module, Simrad NSS evo2 & NSS sport multifunction displays

- Dual Frequency:
The dual-frequency HST-DFSBL includes a single ceramic element delivering both 50 kHz with a 29° beam width, and 200 kHz with a 12° beam width. 50 kHz low-frequency operation offers a maximum operational depth of 900 m (3000 ft), while 200 kHz high-frequency provides higher-resolution fish arches and bottom detail in shallower water.

- Depth/Temperature:
One sensor does it all. Able to measure both depth and temperature in a single package, the HST-DFSBL simplifies installation and requires just one connection to your echosounder module or multifunction display.

- Mounting:
With plastic housing, the HST-DFSBL is suitable for transom mounting on any hull. Transom-mounted transducers are designed for smaller outboard and I/O boats, and are well suited to planing hulls. Transom mounting offers simple installation and maintenance, and the transducer can be adjusted easily to compensate for transom angle.

Whats in the box?
50/200 kHz Skimmer Transducer Mounting Kit
