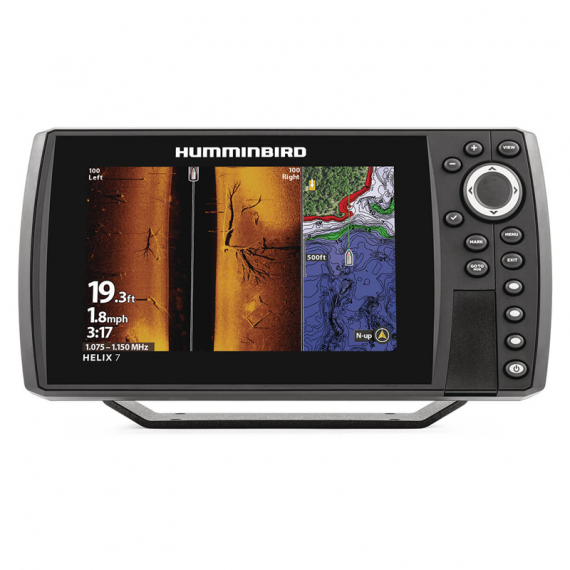

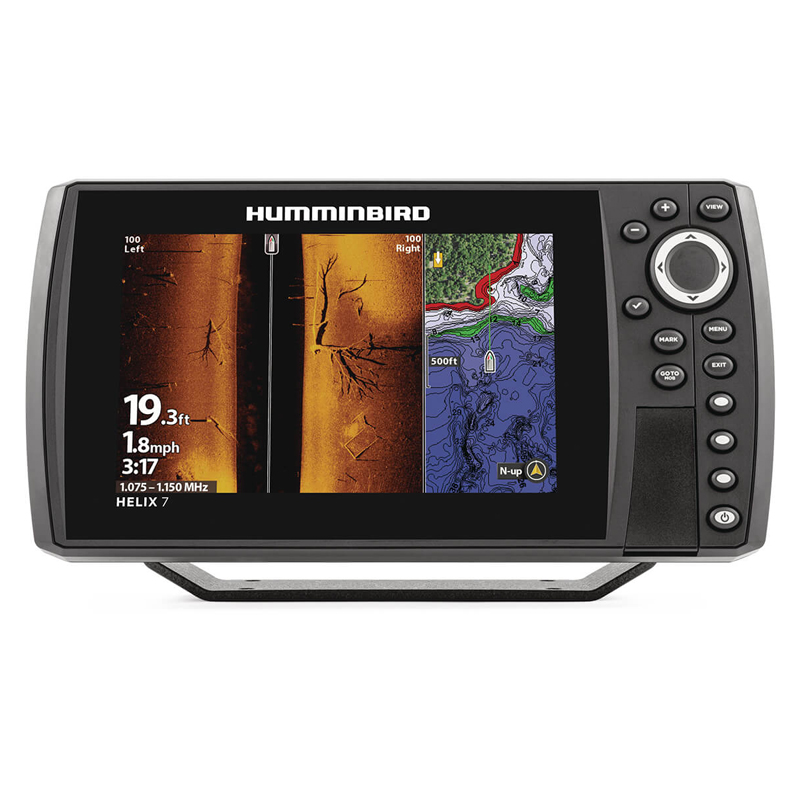

Humminbird Helix 7 CHIRP MSI GPS G4N

Mega Imaging
Crystal clear MEGA views. 76 metres side to side and 23 metres in depth. The 455 kHz band offers a range of 244 metres side-to-side and 122 metres in depth.

Dual Spectrum CHIRP
Also known as High Wide (HW), this is the latest development in advanced 2D sonar. The new wideband elements in the Dual Spectrum transducers have a very low Q value and deliver detailed 2D images with incredible separation. Combined with new algorithms and refined technology, the result is unparalleled.

AutoChart Live
Create your own real-time charts with depth, bottom hardness and vegetation with AutoChart Live. The unit has a built-in 8-hour recording memory. If you wish to extend this, AutoChart ZeroLine cards are available as accessories below. The card offers well over 2000 hours of mapping.

NMEA 2000
Connect the HELIX G4N to other devices on board via NMEA 2000 and display AIS information and engine data directly on the screen.

Ethernet
The HELIX G4N is network compatible and can be easily connected to another HELIX device to share sonar data and waypoints, among other things. In addition to sharing the above information, it is also possible to connect various accessories via the network connection such as Humminbird CHIRP Radar and i-Pilot Link compatible trolling motor from Minn Kota.

Bluetooth & Wi-Fi
Thanks to Bluetooth, it is possible to control the sonar directly from a wireless RC2 remote control, connect your mobile phone to update software and to receive notifications of messages and calls directly on the screen. It is also possible to control the Minn Kota Talon and Raptor as well as the Cannon Optimum directly from the sonar.

Navionics charts
Prepared for Navionics cartography and supports Navionics Small, Navionics+, Platinum+ and Navionics Update charts. Charts can be overlaid with AutoChart Live.

Dual chart slots
The dual MicroSD card slots provide features such as using dual charts with different areas, saving screenshots on an empty separate SD card, using an AutoChart ZeroLine card while using Navionics Cartography and several other possibilities.

The HELIX 7 G4N comes equipped with three programmable hotkeys that allow the user to always have their favorite views at hand.

Specifications
DISPLAY
7" 1024×600 HD 16:9 TFT colour 1500nit

GPS ANTENNA
Internal Precision 10Hz GPS

NETWORK (adapter required for connection to other devices)
Ethernet 1Gbit
NMEA0183 (extra cable required)
NMEA2000 (AS QD NMEA 2000 required)

BLUETOOTH
Wireless remote control (not included)
Ability to view notifications from phone

MAPS (2x MicroSD card)
Navionics Nav+ and Platinum+ (optional)
Humminbird AutoChart (optional)
Humminbird AutoChart Live (standard)

MEMORY CAPACITY
Routes - 47
Waypoints - 2500
Tracks - 50pcs /20000 mrk in each

POWER SUPPLY
Voltage 10,8-20VDC
Consumption 0,9A

SONAR DATA
Type: CHIRP Digital Echosounder DSP / Dual Spectrum CHIRP / CHIRP Down Imaging / CHIRP Side Imaging / MEGA IMAGING
Power: 4000W (PTP) 500W (RMS), (For full power a 1kW transducer is required)

Frequency and range with supplied transducer:
MEGA Side Imaging
455: 440-500 kHz (244 m side to side)
MEGA: 1075-1150 kHz (122 m side to side)

MEGA Down Imaging
455 kHz: 440-500 kHz (122 m depth)
MEGA: 1075-1150 kHz (23 m depth)

Dual Spectrum CHIRP
Full Mode: 150-220 kHz
Narrow Mode: 180-240 kHz @ 25°
Wide Mode: 140-200 kHz @ 42°
Depth: 365m

Included in package
Helix 7 G4N MEGA SI CHIRP GPS
XNT 9 HW MSI 150 T Aft sensor
Power cable
Clamp
Sling swivels
English Manual
