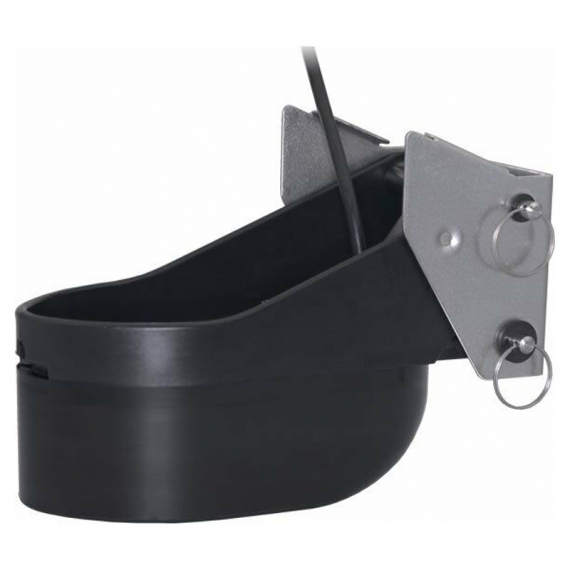

Airmar XSONIC TM275LH-W


Select options: See all add-ons
€2399
€2950.50
| Rec. price
Buy
Back order item
0 In stock
In store
Delivery time 1-3 weeks


Summary

The XSONIC TM275LH-W from Airmar is a urethane, CHIRP transducer that is transom-mounted, perfect for sportfishing and commercial vessels 8 m (25 ft) and up.

Productinformation

The XSONIC TM275LH-W from Airmar is a urethane, CHIRP transducer that is transom-mounted, perfect for sportfishing and commercial vessels 8 m (25 ft) and up. This dual-channel transducer combines Low CHIRP frequencies to accurately track the bottom in deep water, with High CHIRP at a constant 25° beam width for the bestpossible resolution and coverage in the upper water column and in shallower depths.

- Dimensions: W x H x D108 x 191 x 74 mm (W, L, D) (4.3 x 7.5 x 2.9") without bracket
- Weight: 4 kg (8.9 lb)
- Frequencies: 42-65 kHz & 150-250 kHz
- Max Depth: 760m (2500 ft) (low freq) depending on Sonar
Show more Show less

Specifications

Questions & Answers

Related Reports & Guides

Product Safety Information (GPSR)

Importer

Registered contact information for the responsible company within the EU.

Name navico
Corporate number 556761-4416
Address Bolshedens Industriväg 30
427 50 Billdal
Country Sverige
Phone 031-726 14 00
Email sales@navico.com
Homepage navico.com

Included in the collection:

See the full collection
The XSONIC TM275LH-W from Airmar is a urethane, CHIRP transducer that is transom-mounted, perfect for sportfishing and commercial vessels 8 m (25 ft) and up.
The XSONIC TM275LH-W from Airmar is a urethane, CHIRP transducer that is transom-mounted, perfect for sportfishing and commercial vessels 8 m (25 ft) and up. This dual-channel transducer combines Low CHIRP frequencies to accurately track the bottom in deep water, with High CHIRP at a constant 25° beam width for the bestpossible resolution and coverage in the upper water column and in shallower depths.

- Dimensions: W x H x D108 x 191 x 74 mm (W, L, D) (4.3 x 7.5 x 2.9") without bracket
- Weight: 4 kg (8.9 lb)
- Frequencies: 42-65 kHz & 150-250 kHz
- Max Depth: 760m (2500 ft) (low freq) depending on Sonar
