Airmar XSONIC SS60 20 DEG

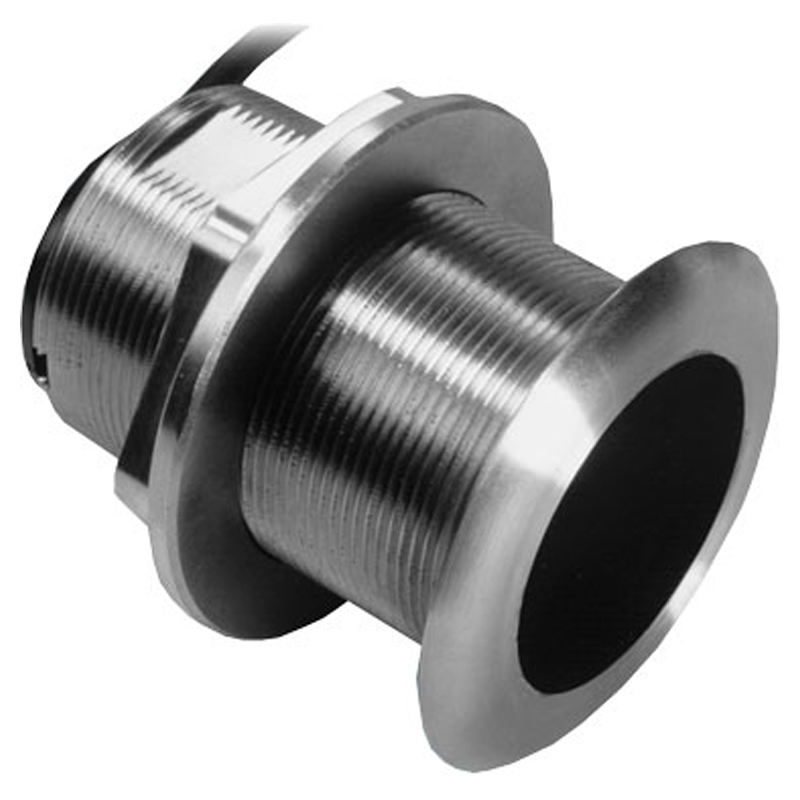

XSONIC SS60 20 DEG from Airmar is a stainless steel, thru-hull broadband transducer, perfect for smaller sportfishing and commercial vessels up to 25ft in length. The low profile housing minimises drag with just 5mm extending outside of the hull, the 20° tilt is ideal for boats with a 16° to 24° hull deadrise.

Works at 50 kHz and 200 kHz for good target detail in shallow water and excellent bottom tracking in deep water.

• 20 degree tilt
• Stainless Steel
• Dual frequency (50kHz and 200 kHz)
• Temperature sensor for accurate water temperature readings
• Calculates depth

- Weight:1.4 kg (3lb)
- Max Depth: 350m (1200 ft) depending on Sonar
- Frequencies: 50/200 kHz
- Dimensions: W x H x D 84 (d) x 95 mm (3.3 x 3.75)
